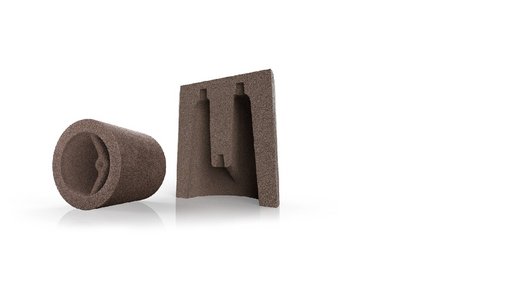

Compact-Feeder
Compact-Feeders have an increased wall thickness compared to classic insert sleeves. The resulting increased exothermic reaction makes it possible to reduce the volume of the inner feeder and thus leads to improved output.
This effect is supported by the good insulation properties of the Cold-Box-bonded formulations. This product range is part of the classic feeder systems and is suitable both for moulding onto the pattern plate and for core shooting.
Benefits of Compact-Feeders
Compact-Feeders were developed as an alternative to classic feeder caps. Due to their more complex geometry, as well as the development of innovative bulk formulations, the Chemex Compact-Feeders offer a wide range of benefits for our customers:
Lower scrap rates
Lower melting costs
Fluorine-free formulations
Optimised outer geometries
Higher yields
Smaller footprints

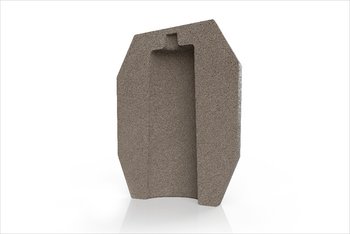

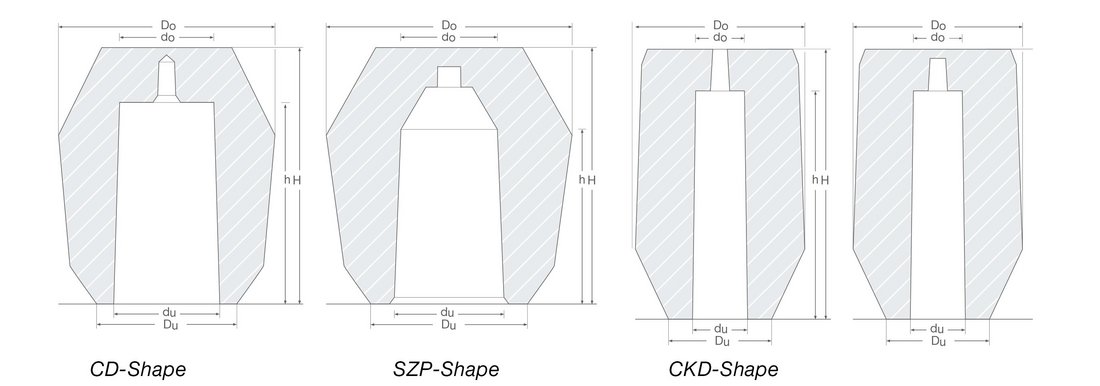

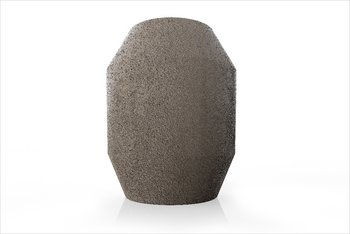

The CD-Shape
More exothermic material and a more massive, complex outer geometry result in higher output
Smaller contact zone
Fluorine-free formulations prevent surface defects

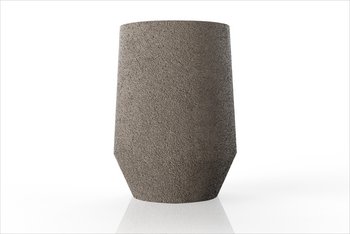

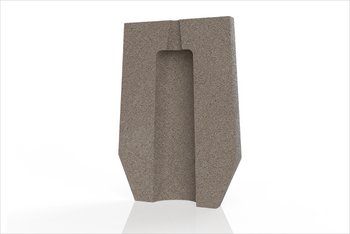

The CKD-Shape
Excellent output due to smaller internal volume and much higher volume of exothermic material
Specially developed and optimised for small module areas
Smaller footprint
Fluorine-free formulations prevent surface defects

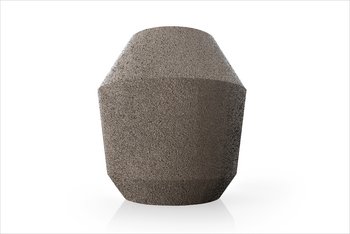

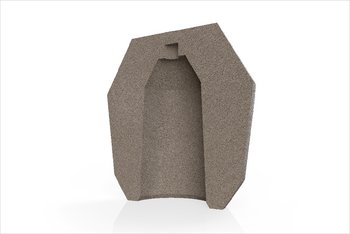

The SZP-Shape
Can be configured as upper part for the Tele-Feeder thanks to self-centring inner geometry
Increased feeding volume thanks to more voluminous internal geometry
Available with W-bar
Available with oval diffuser
Fluorine-free formulations
